38SLC – Liquid Level Controller

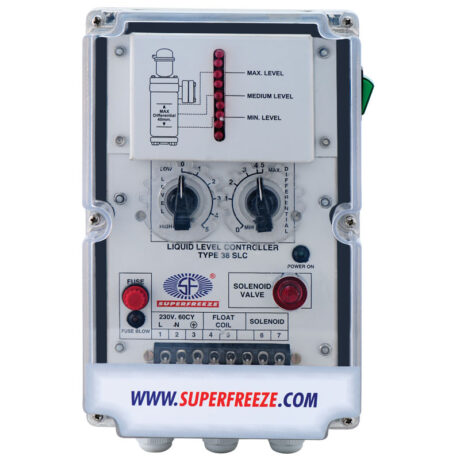

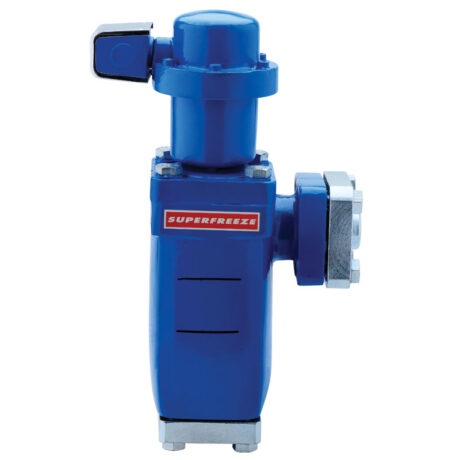

SUPERFREEZE Liquid Level controller types 38SLC are used to regulate the liquid level in a vessel or a flooded coil. The level controller consists of float chamber and an electronic controller. A level indicator module is also mounted on the controller consisting of LED’s operating in bar graph mode. The indicator display the rising and falling of liquid level inside the float chamber
SPECIFICATIONS:
| Refrigerants | : R-717 (Ammonia), R-12, R-22, R-502 etc. |
| Differential | : Adjustable between 10 and 50 mm |
| Media temperature range | : -45°C to +55°C |
Max. permissible ambient temperature for controller | : +55°C |
Max. operating pressure for float housing | : 21bar |
Max. test pressure for float housing | : 29bar |
| Enclosure | : IEC 529 or DIN 40050 For float housing : IP65 For controller housing : IP55 |
